ALTAIR 8800micro Build

9 Jul

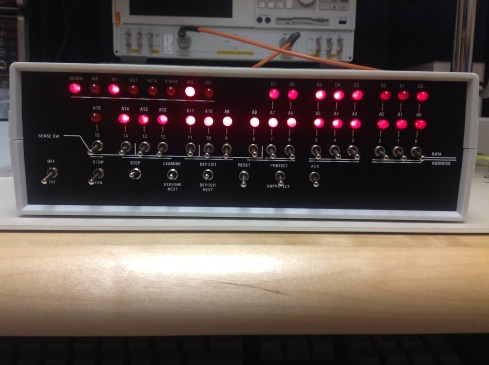

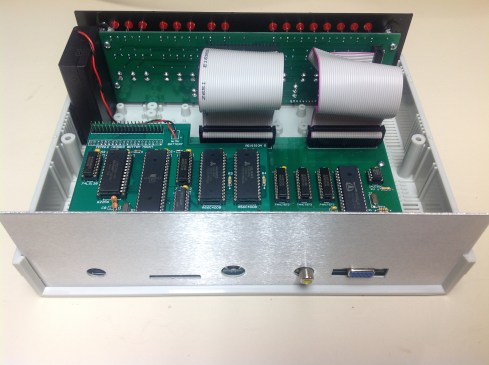

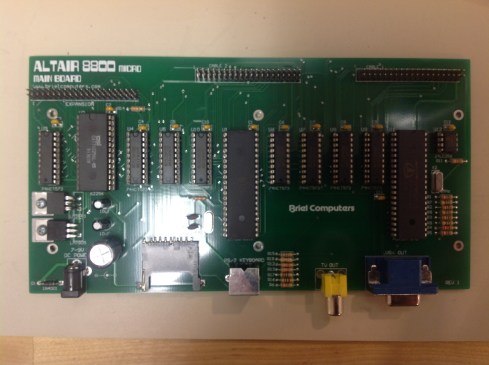

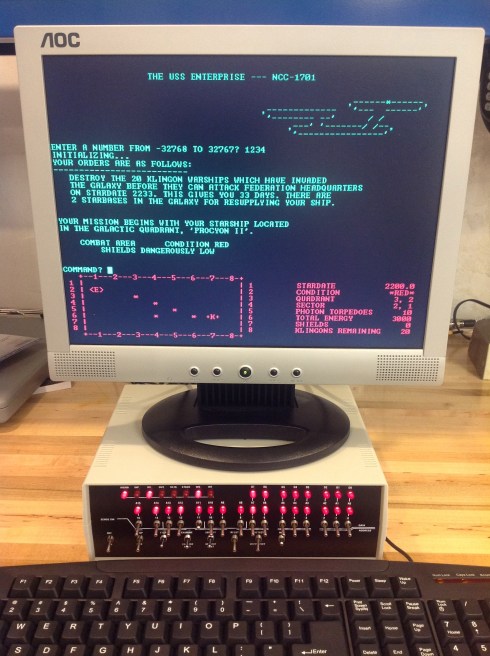

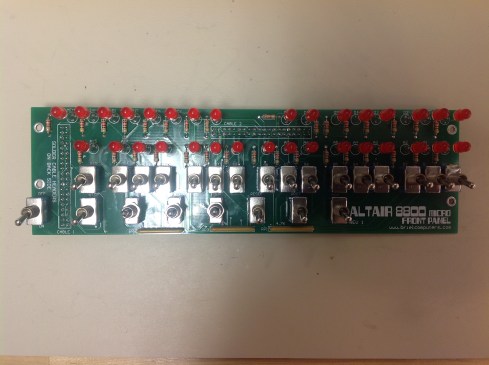

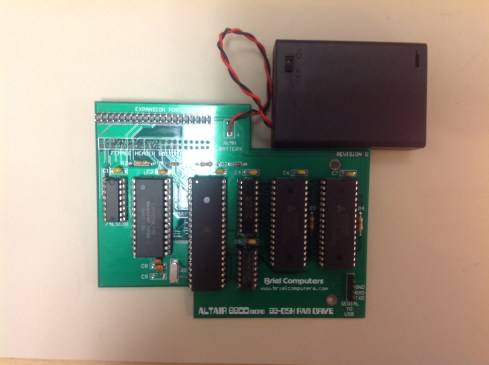

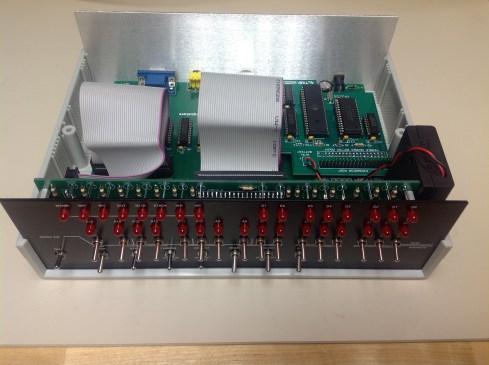

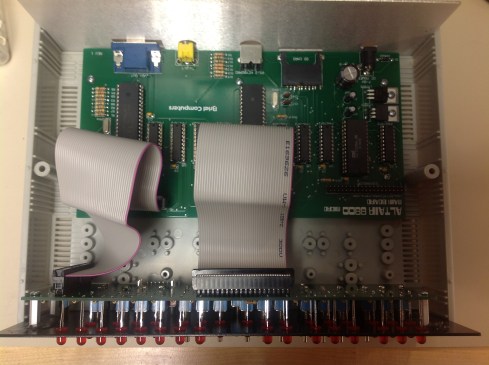

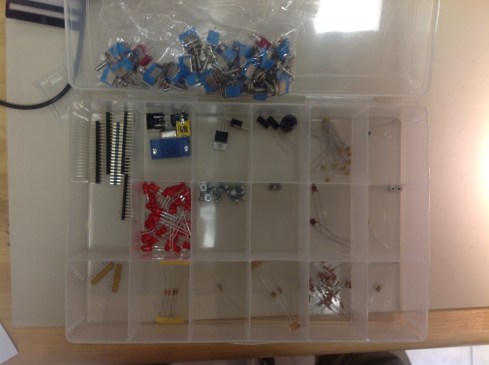

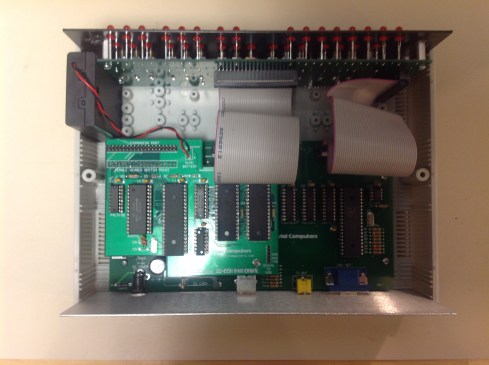

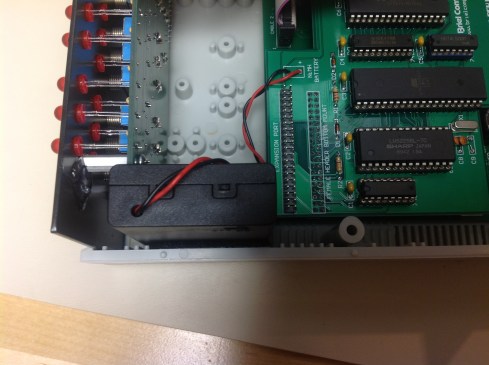

ALTAIR 8800micro kit from Briel Computers

IMG_0040IMG_0041IMG_0042IMG_0044IMG_0045IMG_0046IMG_0047IMG_0048IMG_0049IMG_0050IMG_0051IMG_0052IMG_0068

Advertisements

Adding new systems to Hyperspin

28 Nov

This example will add Colecovision.

Edit this file:

E:\HyperSpin\Databases\Main Menu\Main Menu.xml

To add a system entry:

<game name="Colecovision"/>



Create a new ini file by copying an existing one (such as Atari 5200.ini):

E:\HyperSpin\Settings\Colecovision.ini



Launch:

E:\HyperSpin\HyperSync Cloud\HyperSync Loader.exe

Add ColecoVision, set all to Default, and sync database.



Launch:

E:\HyperSpin\HyperLaunch\HyperLaunchHQ\HyperLaunchHQ.exe

Select GLOBAL system and click Emulators tab.

Select MESS and change path to:

E:\HyperSpin\Emulators\MESS\mess64.exe

Click Settings tab and change 7z Enabled to True and Extract Path to:

E:\7z_temp

Select Colecovision system and click Emulators tab.

Set Rom Paths to:

E:\HyperSpin\HyperSpin_Ready\Cart Systems\Coleco - ColecoVision

Set Default Emulator to MESS



Launch:

E:\HyperSpin\HyperLaunch\HyperLaunch.exe

and test a game to be sure it launches.

Setting up NI GPIB-USB-HS under Linux

26 Jul

Mostly stolen from: http://www.cl.cam.ac.uk/~osc22/tutorials/gpib_usb_linux.html

Note unlike the ni_usb_b, this is the ni_usb_hs so no firmware has to be loaded at boot, thus gpib_config can be called directly.

Get latest source code
http://linux-gpib.sourceforge.net/

Typical build in /usr/local/src with
./configure
make
sudo make install

Edit configuration
sudo vi /etc/gpib.conf

board_type = "ni_usb_b"
name = "gpib0"

Add udev rules
sudo vi /etc/udev/rules.d/99-linux_gpib_ni_usb.rules

SUBSYSTEM=="usb", ACTION=="add", ENV{DEVTYPE}=="usb_device", ATTR{idVendor}=="3923", ATTR{idProduct}=="709b", MODE="660", GROUP="username", SYMLINK+="usb_gpib"
SUBSYSTEM=="usb", ACTION=="add", ENV{DEVTYPE}=="usb_device", ATTR{idVendor}=="3923", ATTR{idProduct}=="709b", RUN+="/usr/local/sbin/gpib_config"
KERNEL=="gpib[0-9]*", ACTION=="add", MODE="660", GROUP="username"

sudo udevadm control –reload-rules

Note udev will not run the gpib_config at boot, so add it in rc.local
sudo vi /etc/rc.d/rc.local

#!/bin/sh
/usr/local/sbin/gpib_config
exit 0

sudo chmod +x /etc/rc.d/rc.local
sudo systemctl enable rc-local.service
systemctl status rc-local.service

Tests
Now plug in the adapter and run ibtest
Reboot and run ibtest

Linux Multimedia

19 Jul

Logitech C615 HD Webcam
sudo vi /etc/udev/rules.d/99-webcam.rules

SUBSYSTEMS=="usb", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="082c", MODE:="0666"

sudo udevadm control --reload-rules

Dell XPS 13 Webcam
sudo vi /etc/udev/rules.d/99-webcam.rules

SUBSYSTEMS=="usb", ATTRS{idVendor}=="0bda", ATTRS{idProduct}=="5752", MODE:="0666"

sudo udevadm control --reload-rules

RPM Fusion Repository
sudo yum localinstall --nogpgcheck http://download1.rpmfusion.org/free/fedora/rpmfusion-free-release-$(rpm -E %fedora).noarch.rpm http://download1.rpmfusion.org/nonfree/fedora/rpmfusion-nonfree-release-$(rpm -E %fedora).noarch.rpm

GUVCView Webcam Recording
sudo yum install libwebcam guvcview

Change resolution to 1280×720 on XPS-13

Set sound device to hw:2,0 for Logitech webcam

Screen Recording
sudo yum install gtk-recordmydesktop

Set sound device to DEFAULT for Logitech webcam

May also need to use hw:0,0 (use arecord -l to list input devices)

Video Editing
sudo yum install openshot

Video Playback
sudo yum install vlc

Fedora 20 x86_64 Linux Install Notes

7 Feb

Hardware Configuration
2 TB HDD on Intel 6G SATA port 0, /dev/sda, (Windows 7)
96 GB SSD on Intel 6G SATA port 1, /dev/sdb, (Intel RST cache for Windows 7)
2 TB HDD on Intel 3G SATA port 2, /dev/sdc, (Shared Windows / Linux)
DVD on Intel 3G SATA port 4
240 GB SSD on Marvel 6G SATA port 0, /dev/sdd, (Linux)
Asus P8Z68 Deluxe/Gen3 Bios
RAID for Intel SATA controller
Marvel controller enabled
Boot order (DVD port 4, USB, HDD port 0)
Intel RST Option ROM
RAID0(Cache) for SSD port 1
EasyBCD installed on Windows boot partition.
Boot selection for Linux (/dev/sdd1) or Windows (/dev/sda1)

Fedora Boot CD
Tab at install to modify boot commands.
Remove quiet.

Network Config
IPV4: manual
Address: 192.168.1.2
Netmask: 255.255.255.0
Gateway: 192.168.1.1
Nameserver: 64.126.4.190
IPV6: ignore
Hostname: tesla.lounix.net

Date/Time
Location: Chicago

Software Selection
XFCE Desktop (development tools, extra plugins)

Destination
Choose 2 TB HDD (the last one in the list)
Automatic partitioning

After Reboot
Create user and add to admin group
Synchronize time over network

Change to multi-user.target (e.g. runlevel 3)
sudo rm /etc/systemd/system/default.target
sudo ln -s /lib/systemd/system/multi-user.target /etc/systemd/system/default.target

Change GRUB
sudo vi /etc/default/grub and remove rhgb quiet
sudo grub2-mkconfig -o /boot/grub2/grub.cfg

If for some reason Intel RST was enabled during install, the above will re-scan for bootloaders

Reboot
reboot
login
startxfce4

Update the System
sudo dnf update

Enable root Account
sudo passwd

Install Custom Shell Scripts
cp .bash_profile ~
cp .bashrc ~
cp .profile ~
cp .vimrc ~
sudo cp .bashrc /root

Directory Permissions
sudo chmod 777 /usr/local/src

Add Library Path to Linker
sudo vi /etc/ld.so.conf.d/usrlocal.conf
add /usr/local/lib
add /usr/local/lib64
sudo ldconfig

Firewall
sudo /usr/bin/firewall-config
Change default zone to internal
Trust services as required

Printer
sudo system-config-printer
Search for network printer at 192.168.1.4
Use DirectJet port
Choose driver for Brother HL-5170DN
Use BR-Script3

Sound
sudo usermod -a -G audio username
(must reboot to take effect)

nm-applet
The nm-applet gives insufficent permission errors when changing WiFi due to startxfce4 instead of using a display manager. This will fix it:

sudo vi /etc/polkit-1/rules.d/50-org.freedesktop.NetworkManager.rules
polkit.addRule(function(action, subject) {
if (action.id.indexOf("org.freedesktop.NetworkManager.") == 0 && subject.isInGroup("myusername")) {
return polkit.Result.YES;
}
});

(must reboot to take effect)

Apple II Floppy Drive Cable Retention Clamps

8 Jul

The Apple //e I recently acquired was missing the floppy drive cable retention clamps. As you can see from the manual pages, they retain the cable against accidental pulling, which could possibly break the floppy controller.



However they also reduce electromagnetic emissions (EMI). The ribbon cable has a copper braid, which I assume runs the length of the cable. It does not terminate on the floppy drive so it would serve no purpose other than EMI shielding, and to reduce coupling between adjacent wires. Nonetheless, the braid ought to be electrically bonded to the chassis, hence the need for the retention clamps.


I made the clamps out of 1/2″ x 3/32″ brass flat stock available at most hardware stores. It comes in a 12″ length for about $6. Take a sharpie and ruler, and mark off 2″ increments. Draw a centerline down the stock, then mark off 1/4″ from the each 2″ increment; this is where the holes will be drilled. Center punch the holes marks.

Drill 3/32″ holes for the back-plates and 1/8″ holes for the front plates. Tap the 3/32″ holes to 4-40 NC. Saw across the 2″ marks and file the edges smooth. Mark off a notch 1.2″ x 0.1″ on one long edge of each piece, then file the notch.


The drive cable lug will sandwich between the two pieces, which in turn will be held to the chassis with 4-40 x 1/2″ machine screws.






Apple IIe Unboxing

4 Jul

Found this Apple IIe, specifically a //e, on EBay. I normally would not purchase a system on eBay, however, this was a local seller so there was no shipping involved; cash and carry. The buy-it-now was $350 so I put in an offer for $150, which was accepted.

The system is in immaculate condition with the exception of the yellowing. No scratches or even dust. It was purchased from the original owner , a lady who bought I new, and from the looks of it, put it into storage after a few weeks. The peripherals came with the original boxes.

I ordered a Super Serial card on eBay for $10 which will allow me to bootstrap the machine to write disks from a modern PC. I’ll definitely be attending the vendor fair at KansasFest 2012 in hopes of finding a compact flash drive and a ROM upgrade.
